Volkswagen Touran Owners Manual: Instrument overview

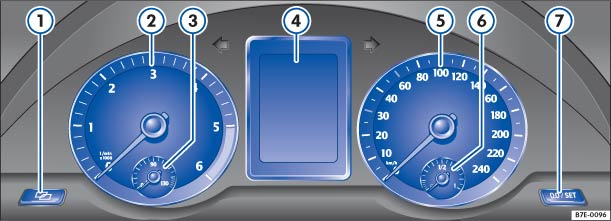

Fig. 11 Instrument cluster in the dash panel
First read and observe the introductory information
and safety warnings Descriptions of the instruments :
Setting button for the clock 1)
- Press the button
to mark either the hours
or minutes display.
- Press the button 0.0 / SET to set the time . Press and hold to scroll through the minutes quickly.
- Press button again to finish setting
the clock.
- Press the button
Rev. counter (revolutions x 1000 per minute of running engine).
The start of the red zone on the dial indicates the maximum engine speed which may be used in each gear when the engine is warm and after it has been run in properly. You should change up a gear or move the selector lever to D (or lift your foot off the accelerator) before the needle reaches the red zone .
Engine coolant temperature display
or Natural gas fuel tank display
in vehicles with natural gas engine .
Displays .
Speedometer
Fuel gauge .
Reset button for the trip recorder display (trip).
- Press 0.0 / SET button to reset to zero.
NOTICE
- When the engine is cold, avoid high engine speeds, driving at full throttle and over-loading the engine.
- In order to avoid damage to the engine, the pointer on the rev counter may only briefly point into the red area.
Changing up a gear early will help to save fuel and minimise engine noise.
1) In some equipment levels, clock settings are made using the Settings menu on the instrument cluster display .
Introduction
This chapter contains information on the following subjects:
→ Instrument overview
→ Displays
→ Service interval display
Additional information and warnings:
...
Displays
First read and observe the introductory information
and safety warnings Depending on the vehicle equipment level, various information
can be displayed in the instrument cluster :
Warning ...
