Volkswagen Touran Service Manual: CAN Bus Wires, Repairing

Volkswagen Touran Service Manual / Electrical System / Wiring / Wiring Harness and Connector Repairs / CAN Bus Wires, Repairing

Unshielded two-strand wiring -1- and -2- with a cross section of 0.35 mm² or 0.5 mm² can be used as CAN bus wiring.

The color coding of CAN bus wires can be found in the following table:

CAN High wire, powertrain	orange/black
CAN High wire, Convenience	orange/green
CAN High wire, Infotainment	orange/violet
CAN-Low lead (all)	orange/brown

Repairs on CAN-Bus wires can be performed with repair wire with matching cross section and also with twisted wires "green/yellow" or "white/yellow" from Parts Catalog.

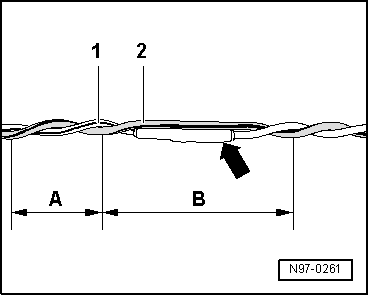

When repairing Bus leads, both wires must be of the same length. When twisting together wires -1- and -2-, the lay length of -A- = 20 mm must be observed.

While doing this, no section of the wire, for example, in area of crimp connectors -arrow-, may be greater than -B- = 50 mm without twisting of the wires.

Wrap repair points with yellow adhesive tape to mark a performed repair.

Airbag and Belt Tensioner Wire Repair Information

Note Observe general notes for repairs on the vehicle electrical system. Refer to → Chapter "Vehicle Electrical System, General Repair ...

Antenna Wires, Replacing

A new repair concept has been developed for repairing antenna wires. Refer to → Chapter "Antenna Wires, Repairing". Instead of a com ...
