WARNING

Risk of injury. Follow all Warnings and Safety Precautions. Refer to → Chapter "Warnings and Safety Precautions".

WARNING

Batteries that have a light yellow visual indicator do not have to be tested or charged. Jump starting must not be used!

There is a risk of explosion during testing, charging or jump starting.

These batteries must be replaced.

In this chapter, the base functions of the Battery Charger -VAS5900- are described. Refer to Battery Charger -VAS5900- Operating Instructions for additional information.

Note

The effective charging current can be read out directly on this charging device.

Pay attention to the Battery Charger -VAS5900- Operating Instructions.

The Battery Charger -VAS5900- is designed to charge all 12 V batteries in the VW group.

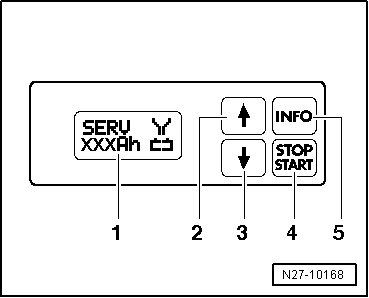

Battery Charger -VAS5900-

1 -

Display

2 -	Adjustment button "Up"↑

3 -	Adjustment button "Down"↓

4 -	START/STOP

5 -

INFO
